SUN GUARD

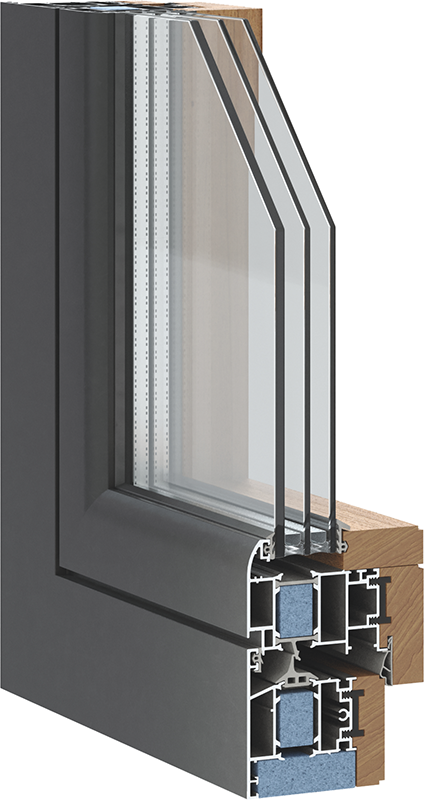

It is possible to apply more than one double glazing combinations in the product and it is possible to reduce U value of the glaze to 0.7 heat permeability ratio thanks to the special double glazing thickness of 37 mm as well as options of triple and double glazing

PRODUCT TESTS PERFORMED AT TURKAK ACCREDITATION CERTIFICATE LABORATORIES

A high success has been obtained in the applied tests and all tests have been certificated.

• Air permeability: TS EN 1026 ve TS EN 12207 – Category 4 (600 Pa)
• Waterproofness: TS EN 1027 ve TS EN 12208 – Category 9 A (600 Pa)
• Wind load: TS 4644 EN 12211 ve TS EN 12210 – Category C 3 (1200 Pa, L/300 compliant with the criterion)
• AcousticTSENISO10140-2 and TSENISO717-1:Rw(C;Ctr)=36,3(-1,8;-4,6)dB
• Static torsion resistance: TS EN 14609 ve TS EN 13115 - Category 4 (350 Newton)
• U Value : TS EN ISO 10077-1 ve TS EN ISO 10077-2 – Uw = 1,3 W/m2K
